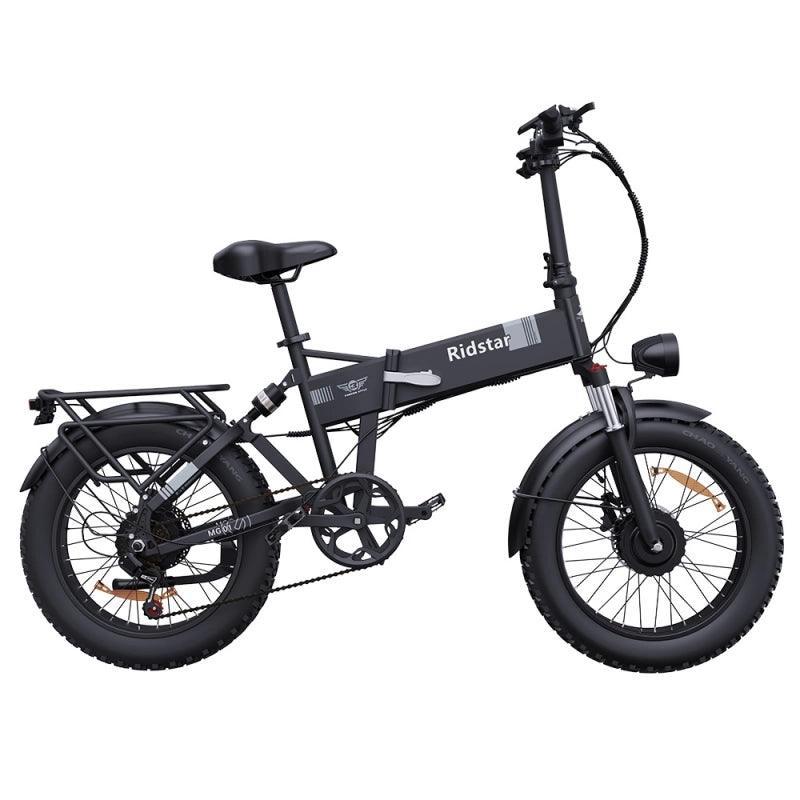

Introducing the 2024 NEW model H20 PRO dual motor electric bike, a cutting-edge solution for modern transportation. This advanced e-bike is equipped with a high-performance 30360 Lithium cell Panasonic battery, offering superior power and efficiency. With a robust size of 1700x240x1050 mm and a wheelbase of 1180 mm, the H20 PRO ensures stability and a comfortable ride. Weighing just 35 kg, it combines lightweight construction with durability.
The H20 PRO features a versatile mode system, including pure electric, electric assist, and pedal modes, making it adaptable to various riding conditions. The frame is constructed from high-quality aluminum, ensuring both strength and lightness. The front fork is hydraulic, providing a smooth and controlled ride, while the braking system includes front and rear disc brakes for reliable stopping power. The transmission system is equipped with a rear gear, and the bike rides on 20”x4.0 tires, offering excellent traction and stability.
An LCD screen enhances the riding experience by providing clear, real-time information. The bike boasts a maximum speed of up to 50 km/h and can cover a driving distance of over 60 km on a single charge. It is capable of tackling slopes of up to 30° and supports an allowable load of up to 150 kg, making it suitable for various users and terrains.
The H20 PRO is powered by dual DC brushless high-speed motors, each with a nominal power of 1000W and a nominal voltage of 48V, ensuring robust performance and efficiency. Charging the bike’s battery takes between 4 to 6 hours. The battery is a high-capacity 30360 Panasonic lithium type with a 23Ah rating, ensuring long-lasting power.
The controller features essential safety protections, including low voltage protection at 39V and overcurrent protection at 25A, to safeguard both the bike and the rider. The package size is 1480x290x810 mm, and the packing list includes the electric bicycle, battery, a multipurpose tool, a charger, pedals, and an instruction manual.
The Ridstar brand ensures high standards of quality and performance, with the H20 PRO delivering a total power of 2000W. This e-bike represents the latest advancements in electric bicycle technology, offering a blend of performance, convenience, and versatility for a superior riding experience.
| Specification |
Details |
| Model |
2024 NEW model. H20 PRO dual motor |
| Battery |
30360 Lithium cell PANASONIC battery |

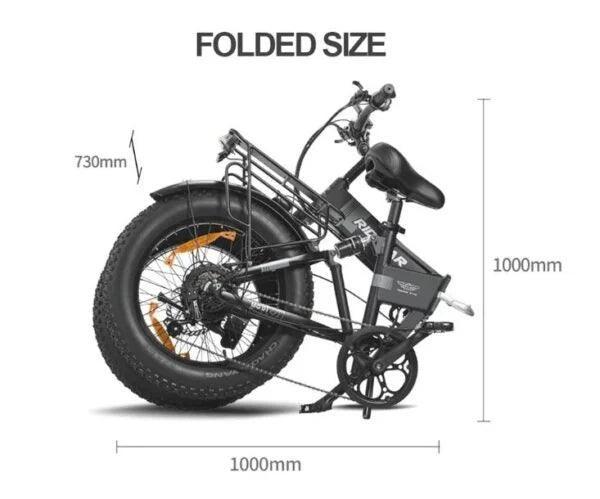

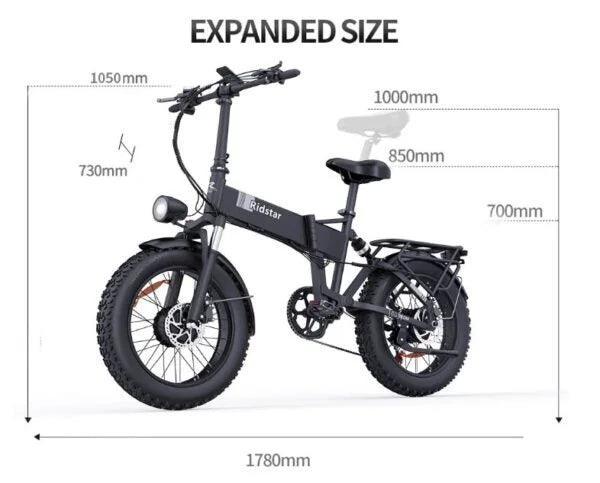

| Size |
1700x240x1050 mm |
| Wheelbase |
1180 mm |
| Actual weight |
35 kg |
| Mode |
Pure electric, electric assist, with pedals |
| Frame material |
Aluminum |
| Front fork |
Hydraulic |
| Braking system |
Front and rear disc brakes |
| Transmission system |
Rear gear |
| Tire size |
20”x4.0 |
| Screen |
LCD |
| Maximum speed |
≤50 km/h |
| Driving distance |
> 60 km |
| Slope |
<30° |
| Allowable load |
≤150 kg |
| Motor type |
DC brushless high-speed motors (2x) |
| Nominal power of 1 motor |
1000W |
| Nominal voltage |
48V |
| Charging time |
4-6 hours |
| Battery type |
30360 Panasonic lithium battery |
| Battery capacity |
23AH |
| Low voltage protection |
39V |
| Overcurrent protection |
25A |
| Package size |
1480/290/810 mm |
| Packing list |
Electric bicycle, Battery, Multipurpose tool, Charger, Pedals, Instruction |
| Brand |
Ridstar |
|
Power: 2000W
|
